Applicable industry:

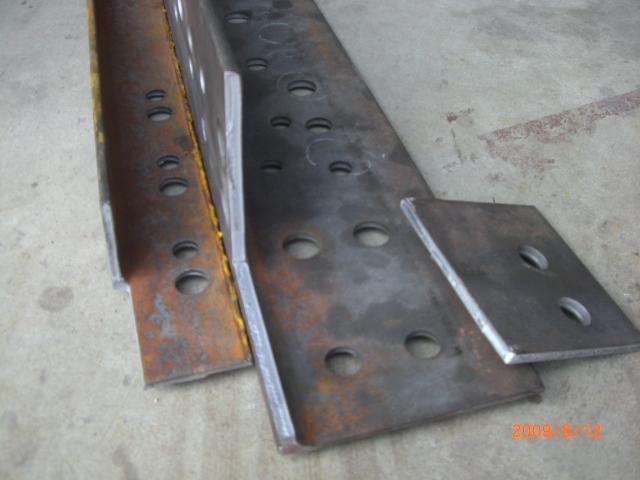

Used for cutting corner of angles and also used for punching & marking by installing of mould.
■The machine with opening C-type structure, its cutting mould is rectangular double-blade mode. Multi-directions rotational corner cutting mould can cut out different angle of angles only need to adjust rotation die-carrier so as not to rotate the angles, so corner cutting with little error only need small working area.
■The machine can be installed marking & punching system by customers’ request, that is, only need to exchange moulds so as to carry out marking or punching of angles.
■The machine with light adjuster makes corner cutting of angles accurately and easy to use it.
Main parameters:
|
Model
|
QJ140
|
QJ160
|
QJ200（Four column）
|
|
Functions
|
Used for cutting corner of angles in steel tower industry
|
|
Nominal pressure(kN)
|
800
|
1000
|
1600
|
|
Stroke of oil cylinder(mm)
|
50
|
50
|
50
|
|
Times of stroke（min-1）
|
20~25
|
20~25
|
20~25
|
|
Power of motor(kW)
|
15
|
15
|
22
|
|
Throat depth(mm)
|
325
|
325
|
Column without throat
|
|
Scope of angles(mm)
|
L40×40×3~
L140×140×12
|
L40×40×3~
L160×160×16
|
L40×40×3~
L200×200×20
|
|
Rotary angles of corner cutting mould
|
360° manual
|
|
Overall dimensions of corner cutting mould(mm)
|
650×650×500
|
700×700×500
|
830×700×600
|
|
Overall dimensions L×W×H(mm)
|
1270×1020×1800
|
1300×1020×1880
|
1370×1120×1900
|
